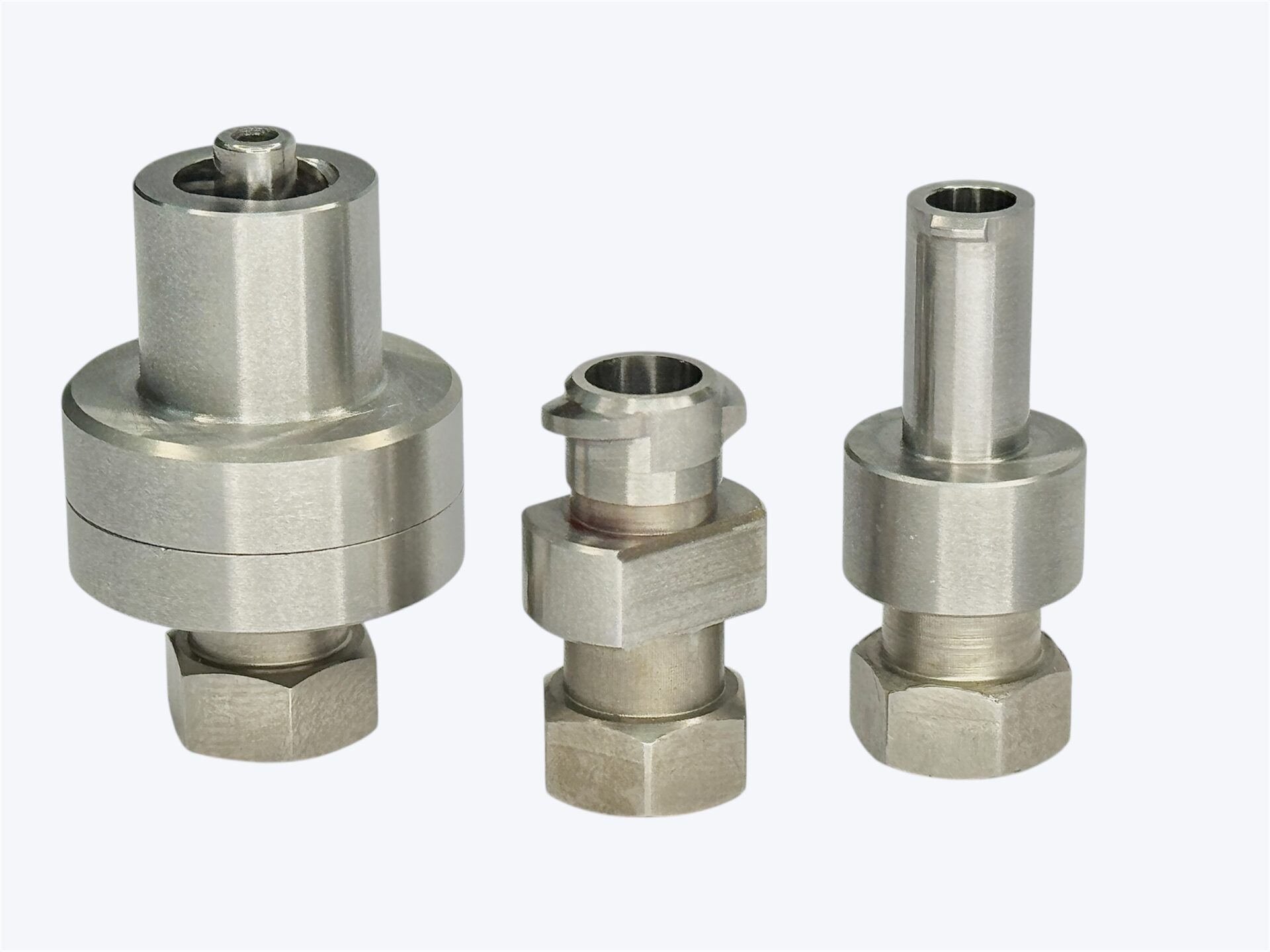

Reference Connectors ISO 80369

S.G. Prittie manufactures a large range of medical luer references connectors to ISO standards and can also manufacture variations to suit your product. ISO 80369 defines testing of small-bore connectors for liquids and gases used in healthcare applications. All reference connectors are supplied with an ISO 17025 calibration report

Standard product features

ISO 17025 calibration report
Ground and lapped gauging faces
Hardened stainless steel 52-56 Hrc.
Pelican 1010 micro case

Applicable standards

ISO 80369-2
ISO 80369-3
ISO 80369-6
ISO 80369-7 and ISO 594
ISO 18250-3
ISO 18250-8

Why this product is used

ISO 80369-20 specifies the common test methods to evaluate the performance requirements for small-bore connectors specified in the ISO and IEC 80369 series as well as the ISO 18250 series.

Downloads
  • Customisation

    Customisation is offered on most gauges. We can add a new feature to a standard gauge, manufacture a revised design based on a standard gauge, or design a new gauge to suit your application.

  • Support

    We offer design and technical support for all our gauges, as well as support for measurement and calibration inquiries. Contact us via phone or email.

  • Delivery

    We offer express or economy delivery and can send products to local, interstate and overseas locations. We’re also happy to use your own delivery supplier.

  • Manufacturing

    We are an Australian business located in Airport West Victoria. Quality is a priority and we have ISO 9001 and ISO 17025 management systems in place.

Range

Swipe to view more
Standard Figure Associated Reference
ISO 80369-2 :2016 C.1 C.2 C.3 C.8 C.9 C.10 C.11 ISO 80369-20
ISO 80369-3 :2016 C.1 C.2 C.3 C.4 ISO 80369-20
ISO 80369-6 :2016 C.1 C.2 C.3 C.4 C.5 ISO 80369-20
ISO 80369-7 :2016 & 2021 ISO 594 C.1 C.2 C.3 C.4 C.5 C.6 ISO 80369-20
ISO 18250-3 :2018 C.1 C.2 C.3 C.4 C.5 C.6 ISO 80369-20
ISO 18250-8 :2018 C.1 C.2 C.5 C.6 ISO 80369-20

FAQs

Can a reference connector be made to my own specification?

Yes, we can revise the standard design to suit variations in your product.

How often do I need to calibrate my gauge?

There is no fixed time, calibration frequency is based on how often the gauge is used and the conditions that the gauge is exposed to. Frequent use and abrasive materials will require more frequent calibration, low use in a clean environment will allow less frequent calibration. Usually the user determines the calibration frequency.

ISO 80369 Reference connector

Calibration of Small Bore Reference Connectors to ISO 80369

ISO 80369 defines testing of small bore connectors for liquids and gases used in healthcare applications.

If you need assistance selecting the correct gauge or have technical questions please contact us.
